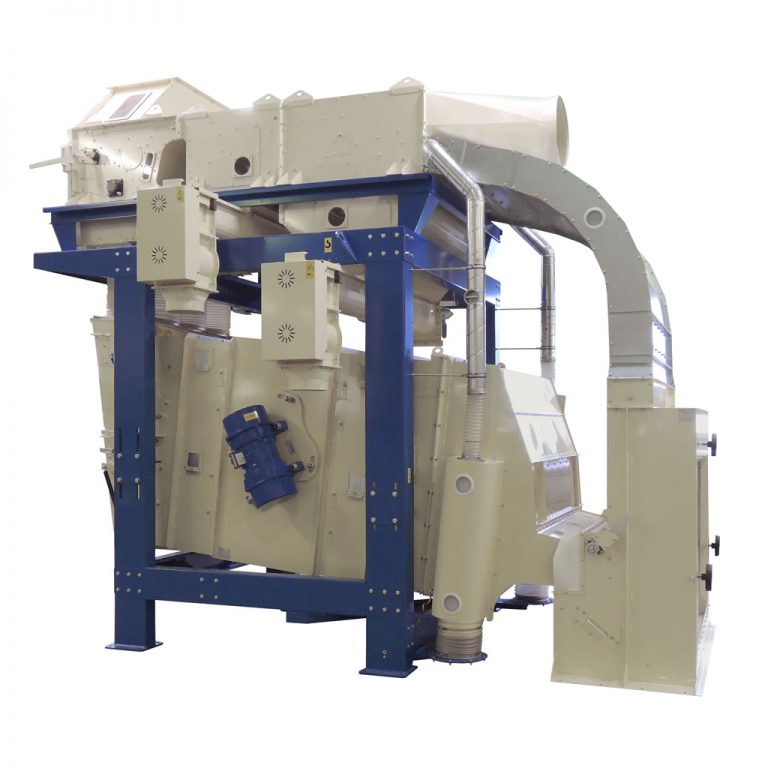

JCM 15223.C1P3A3

JCM 15223.C1P3A3

JCM 10122.C1P0A2

JCM 10122.C1P0A2

JCM Modular Cleaners VibroMAX

JCM Modular Cleaners VibroMAX are designed to clean all agricultural crops from impurities and admixtures. The product is separated based on different particle sizes (sieves cleaning) and different aerodynamic properties (air cleaning).

JCM Cleaners are designed for continuous operation or for greater performance. Sieves are cleaned by rubber balls. Vibrations of sieve box are produced by pair of vibromotors.

Adjacent aspiration channel provides separation of small impurities. Controllable wall of aspiration channel provides for optimal shape adjustment of air channel. Aspiration channel has a built-in permanent magnet that provides separation of ferromagnetic impurities. Machines box construction and air recirculation drain dust into designated areas.

Cleaner and aspiration channel set can be optionally completed with extra modules. For inlet aspiration of machine can be added P1 module: JAC – aspiration precleaner without rotary feeder, or P2 module: JAM – aspiration precleaner with rotary feeder, for some models also P3 module: JAN – aspiration precleaner with rotary feeder and expansion separator. Standard solution of machine outlet aspiraton is ensured by A2 module: JAB – aspiration channel with adjustable channel, or it can be replaced with A3 module: JAE – aspiration channel with adjustable channel and expansion chamber.


Benefits:
  • Compact arrangement
  • Low power consumption
  • Easy installation, commissioning and operation
  • Easy and fast sieves exchange by one person
  • Effective sieves cleaning using flexible balls
  • Effective air cleaning of light impurities in the aspiration channel
  • Dust free operation
  • Quiet and vibration-free operation
Applications:
  • Grain precleaner on the income to silos or storage facilities
  • Grain cleaner in flour mills and grain stores
  • Cleaners of grain and other crops in agriculture (post-harvest lines)
  • Highly effective cleaning or grading of grains and seeds
  • Sorting of different products (sugar, salt, coffee, cocoa, medicinal plants, rubber, plastics, waste, etc.)
  • Sorting and separation of impurities in technological lines
Further optional accessories (besides above menrioned modules) can be added to the machine:
  • deawner, scarifier
  • additional sieve for cleaning of siftings lower sieve
  • dust aspiration from sifting, and others

Technical data:
Machine type JCM 08122 10122 10123 10222 10223 15223 10133 15313
PERFORMANCE
Pre-Cleaning t/h 25 60 60 100 100 200 - 300
Industrial Cleaning t/h 12 25 40 50 80 90 40 -
Fine Cleaning t/h 6 12 18 24 36 45 18 45
DIMENSIONS:
Length mm 2280 2810 3680 3133 3920 4004 3865 4405
Width mm 1275 1645 1645 1645 1645 2479 1645 2485
Height mm 1645 1905 1900 2236 2330 3589 2083 4127
OTHERS:
Rough sieve area 1,9 3,4 5,1 6,8 10,2 12,6 7,65 9,45
Weight kg 590 1050 1150 1260 1460 3350 1245 3500
NOTE
Capacities are valid for wheat cleaning, bulk density 750 kg/m3, humidity max. 16% and when using wire sieves. Machine capacity for each crops types is changing by humidity and the degree of inpurities content, on quality settings and machine adjustements. Dimensions and weights are mentioned incl. aspiration channel (version C1P0A2).
